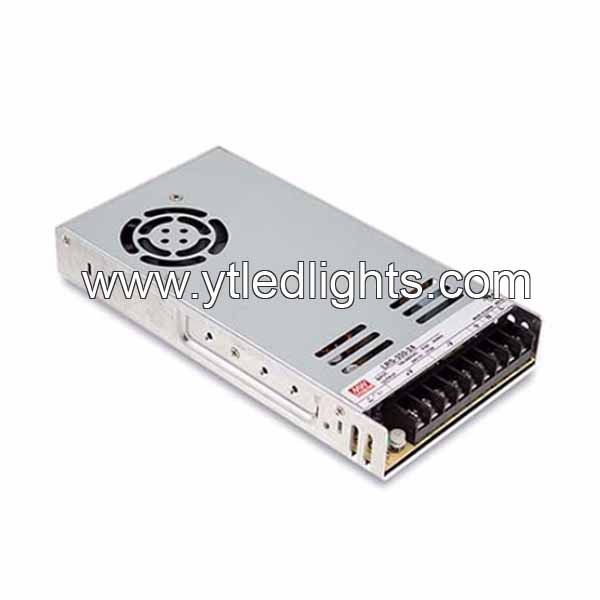

LRS-350-4.2 Mean Well Power Supply 4.2V 350W
Model / reference: LRS-350-4.2
Category: MEAN WELL Power Supply
Please include the required version, quantity and destination country.
Request a quote for this model
LRS-350-4.2 Mean Well Power Supply 4.2V 350W
Quote this model & matching partsWhatsApp about this model
What should I include in my inquiry?
- Include the full MEAN WELL part number and suffix, quantity and destination country.
- For selection help, send the LED load, voltage, run lengths, mains input and intended control/dimming system.
- Confirm the model dimensions, installation environment, available documentation and any required cables or connectors.
Ask us to confirm compatibility, model documents, availability and lead time in the quotation.
Detail Description
|
LRS-350-4.2 Mean Well Power Supply 4.2V 350W |
|||||||
|
Model: |
LRS-350-4.2 |
||||||
|
DC VOLTAGE: |
4.2V |
||||||
|
Max output Current: |
60A |
||||||
|
Input voltage: |
90~132VAC or 180~264VAC |
||||||
|
Rated Power: |
252W |
||||||
|
Frequency Range: |
47~63Hz |
||||||
|
Efficiency: |
81.5% |
||||||
|
Leakage Current(<): |
2mA/240VAC |
||||||
|
Dimension: |
L215*W115*H30mm |
||||||
Detailed description of LRS-350-4.2 Mean Well Power Supply 4.2V 350W:
1)AC input range selected by switch.
2)Withstand 300VAC surge input for 5 second.
3)Protections:Short circut/Overload/Over voltage/Over temperture.
4)Forced air cooling by built-in DC fan.
5)1U low profile.
6)Withstand 5G vibration test.
7)LED indicator for power on.
8)No load power consumption<0.75W.
9)100% full load burn-in test.
10)High operating temperature up to 70¡ãC.
11)High effiency,long life and high reliability.
12)3 years warranty.
